Detail

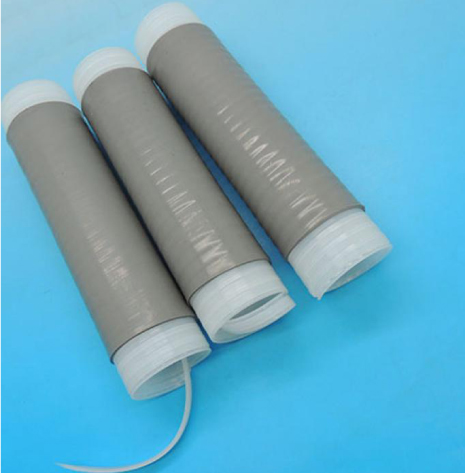

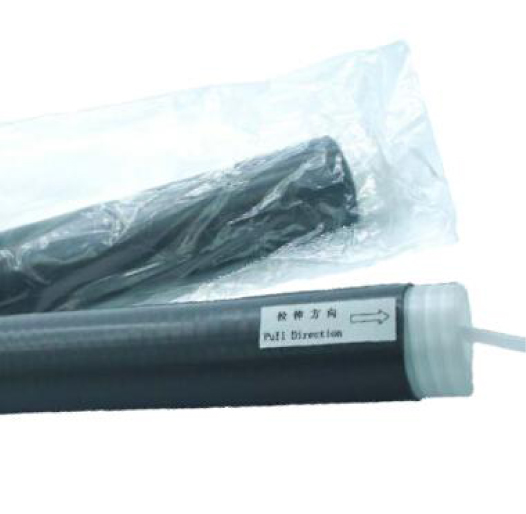

Cold Shrink Tube





Detail







Product Properties:
The main application is the sealing of coax connectors used in the wireless
communication antenna market.
These mainly outside installed connectors require an extra sealing. Up until now,sealing tapes or Heat shrink tubes were used.

Product Usage:
Simple installation6requires only workman’s hands.
Accommodates a wide range of cable sizes
No torches or heat required
Good thermal stability.
Seals tight,retains its resiliency and pressure even after prolonged years of aging and exposure.
Excellent wet electrical properties.
Improved tough rubber formulation to with stand rough back filling.
Waterproof
Resists fungus
Resists acids and alkali.
Resists ozone and ultraviolet light.

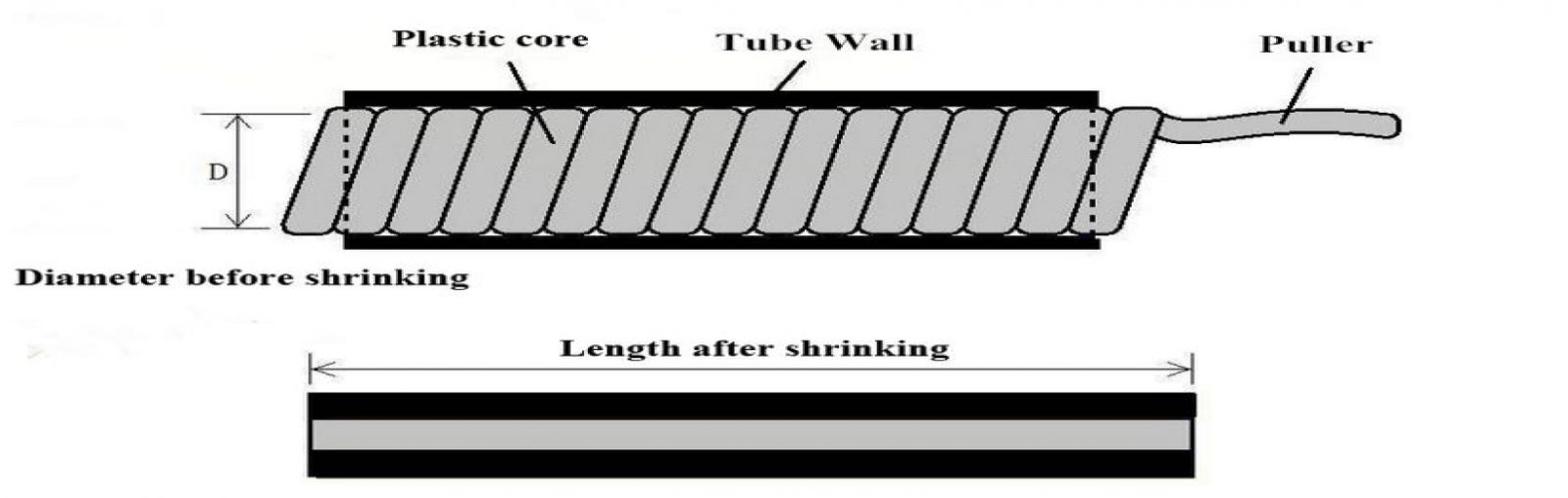

Dimension

Specification Catalogue:

Specs Tube Dia(mm) Tube length(mm)
02080 20 80
020152 20 152
025203 25 203
032305 32 305
035152 35 152
035203 35 203
040152 40 152
040305 40 305
040406 40 406
053152 53 152
053305 53 305
053457 53 457
060254 60 254
070152 70 152
070305 70 305
080325 80 325
104203 104 203
104230 104 230
120508 120 508

Technical Data

Properties Typical Data Teat method
HS 49A ASTM D 2240
Tensile Strength 11.8Mpa GB/T 528
Elongation at Break 641% GB/T 528
Tear Strength 38.6N/mm ASTM D 624
Dielectric Strength 19.1kv/mm ASTM D 149
Dielectric Constants 5 90℃(in water) 7days(194°F)5.6
