Detail

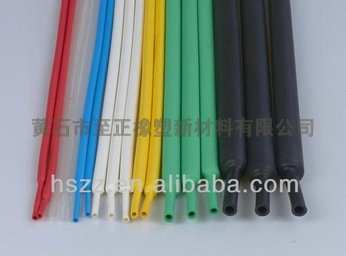

single wall heat shrink sleeve





Detail



Specifications
Rohs/UL certificated
flame retardant pass VW-1
Flexible,non-halogen
shrink ratio:2:1/3:1

Product Information:
It is environmental friendly, flame retardant and halogen free.It is widely used for insulation, anticorrssion, protection and color coding etc.
Product Application:
1 Wire splices and terminations
2.Jacketing of Wire harnesses
3 Mechanical protection and fire-resistant covering
4 Insulation and strain relief of terminals and connections

Product Features:
1.Operating Temperature:-55~ 125 centi degree;
2.Shrinking Temperature:Start at 70 centi degree,and shrunk totally at 110centi degree
3.halogen free, flexible,flame retardant;
4.Certificate: SGS test, Rohs, UL, Reach, ISO.
Standard color:black,white,red,yellow,green,blue, more colors available upon request

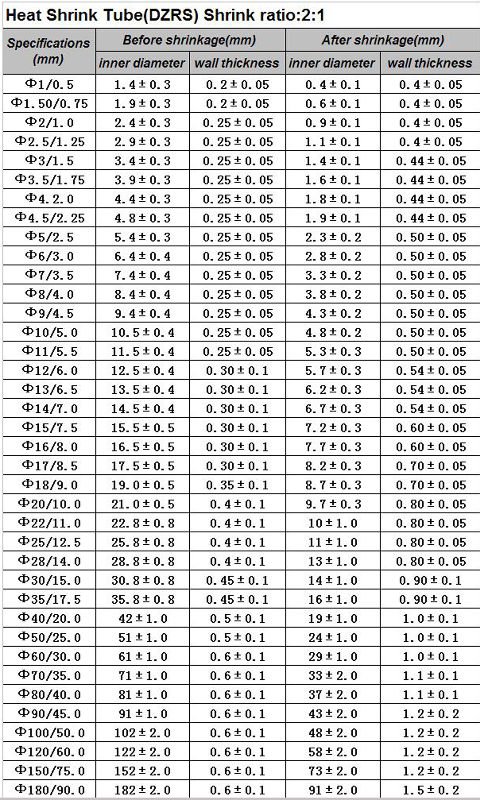

Specification Catalogue:(Size Chart)

Technical data sheet
Description Test Methods Values
Physical Tensile strength(Mpa) GB/T1040 ≥ 12
Breakage elongation rate(%) ≥200
Tensile strength(Mpa) UL224  158°C*168hr   ≥10
Breakage elongation rate(%) ≥200
Low temperature flexibility (-40°C x 4h)  No cracking
Electrical dielectric strength(KV/mm) GB/T1408 ≥15
Voltage resistant UL224 2.5KV No breakdown
volume resistivity(ohm.cm) GB/T1410 ≥1*1014
Chemical Anti-corrosive performance UL224   158°C*168hr  Pass
Copper stability Pass
Fire resistant UL224 VW-1
